This blog explains the technical, safety, and international-standard reasons behind DC control systems, with a practical focus on Isolators, Circuit Breakers, Interlocking, and Protection Systems — areas where Balaji Engineers Isolators Private Limited delivers proven solutions.
Unlike AC, DC control must work even during total power failure.
✅ Operates during complete AC failure
✅ Instant response for protection systems
✅ No frequency dependency
✅ Higher reliability for long control cable runs
✅ Essential for safety interlocking logic
This is why all international grid codes mandate DC control systems.
Substations have long control cable routes between:
110V DC
220V DC
110V DC and 220V DC are globally accepted standards followed by:
They comply with:

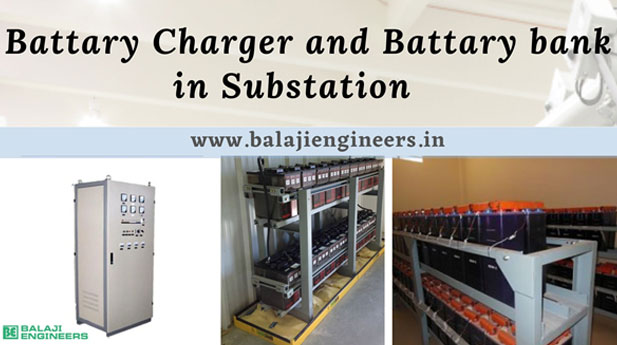

Battery Bank (Lead Acid / VRLA / Ni-Cd)
Battery Charger (Float + Boost Mode)
Under normal conditions, charger supplies DC and charges batteries
During AC failure, battery bank instantly takes over
No interruption in protection or control functions
This makes the DC system the most critical safety backbone of a substation.
Isolators are mechanical safety devices that must operate correctly under strict interlocking conditions.
DC supply is used for:
Motor-operated isolator control
Open / Close indication lamps
Electrical interlocking with circuit breakers
Earth switch operation
Remote operation through SCADA
If DC control fails:
Isolator operation becomes unsafe
Interlocking logic may fail
Maintenance personnel face serious risk
This is where engineering quality matters.

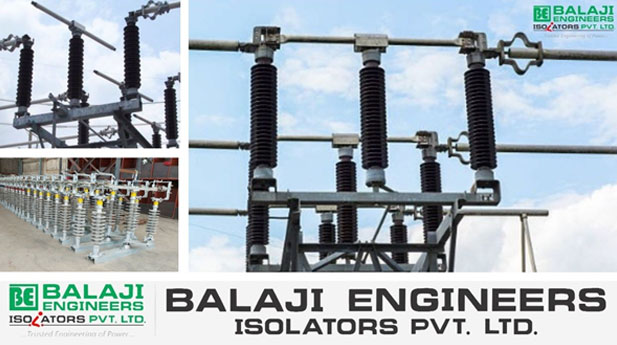

Balaji Engineers Isolators Private Limited is a trusted manufacturer and exporter of isolator disconnectors from India, serving:
Transmission Substations
Distribution Substations
Solar & Wind Power Projects
Heavy Industries
Utility and EPC Projects
Balaji Isolators are engineered with a deep understanding of DC control logic, interlocking safety, and substation reliability.
For international clients, reliability is non-negotiable.
Using isolators compatible with standardized DC control systems ensures:
This is why Balaji Engineers Isolators are increasingly preferred in export-oriented substation projects.
They guarantee:
DC supply is used for:
Protection during faults
Safe isolator and breaker operation
Reliable interlocking
Operator and equipment safety
And when combined with well-engineered isolators, they form the backbone of a safe and dependable substation.
Balaji Engineers Isolators Private Limited continues to support the global power sector with reliable isolation solutions designed for modern DC-controlled substations.
Substation control systems, 110V DC control, 220V DC control, isolator in substation, disconnector switch, substation interlocking, transmission substation equipment, distribution substation control, isolator manufacturer in India, high voltage isolator, DC battery system in substation, Balaji Engineers Isolators, export quality isolators, AIS substation equipment, utility-grade isolator
110v dc control in substation
220v dc control in substation
why dc is used in substation control
substation control wiring explained
dc battery charger in substation
isolator control wiring
substation interlocking explained
isolator vs circuit breaker control
why 110v dc is used in substation
why 220v dc is used in substation
substation control systems
dc control system in substation
DC supply is used because it remains available even during complete AC power failure. Substation protection, circuit breaker tripping, isolator operation, and interlocking systems must work reliably during faults and blackouts, which is only possible with a dedicated DC control system.
110V DC and 220V DC provide the best balance between operational safety, reliability, and voltage drop control over long cable runs. These voltage levels are internationally standardized and widely accepted by utilities and EPC contractors.
110V DC is commonly used in medium-size and distribution substations, while 220V DC is preferred in large transmission substations with longer control cable lengths and higher reliability requirements. The selection depends on substation size, layout, and utility standards.
The DC battery system acts as the backbone of the substation control system. It supplies uninterrupted power to protection relays, circuit breaker trip coils, isolator motors, alarms, and SCADA systems during AC supply failure.
Isolator motor operation, position indication, and electrical interlocking with circuit breakers depend on DC control supply. A reliable DC system ensures safe isolation, prevents wrong operations, and protects both equipment and operating personnel.
No. Without a DC control system, circuit breakers may fail to trip during faults, isolator interlocking may not function, and the substation becomes unsafe. That is why DC control systems are mandatory in all modern transmission and distribution substations.
Balaji Engineers Isolators Private Limited designs utility-grade isolators compatible with 110V DC and 220V DC control systems. Their isolators support reliable motor operation, precise interlocking, and long-term safety for both domestic and export-oriented substation projects.
