Why 110V DC / 220V DC is Used in Substation Control Systems

01

Why is 110V DC or 220V DC used in substation control systems instead of AC?

This blog explains the technical, safety, and international-standard reasons behind DC control systems, with a practical focus on Isolators, Circuit Breakers, Interlocking, and Protection Systems — areas where Balaji Engineers Isolators Private Limited delivers proven solutions.
02

Understanding Control Power in Substations

A substation uses two different power systems :

AC Power System – for transmission and distribution
DC Control Power System – for protection, control, and safety

The DC control system operates :

  • Circuit Breaker trip & close coils
  • Isolator and Earth Switch motor operations
  • Protection relays
  • Annunciators & alarms
  • SCADA, RTU, and communication systems

Unlike AC, DC control must work even during total power failure.

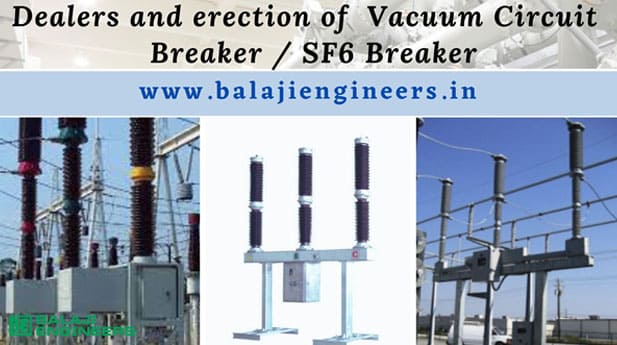

Why AC Supply Is Not Suitable for Control Circuits

During faults such as:

  • Short circuits
  • Grid collapse
  • Transformer failure
  • Blackout conditions
AC auxiliary supply is the first to fail.
03

If control circuits also depend on AC:

  • Circuit Breaker may fail to trip
  • Isolator interlocking may not work
  • Protection relays may become inactive
This creates a dangerous and unacceptable condition in high-voltage substations.

Why DC Supply Is Mandatory in Substation Control Systems

DC systems provide independent, reliable, and fail-safe operation.

  • Operates during complete AC failure
  • Instant response for protection systems
  • No frequency dependency
  • Higher reliability for long control cable runs
  • Essential for safety interlocking logic
This is why all international grid codes mandate DC control systems.

Why Specifically 110V DC and 220V DC?

1. Reliability Over Long Distances

Substations have long control cable routes between:

  • Yard equipment
  • Marshalling kiosks
  • Control rooms
  • Relay & control panels
Higher DC voltage:
  • Reduces voltage drop
  • Ensures reliable operation of coils and motors
  • Improves performance of isolator motor drives

2. Safety vs Performance Balance

110V DC
  • Widely used in medium-size substations
  • Safer for operators
  • Common in distribution and 66kV–132kV substations
220V DC
  • Used in large transmission substations
  • Suitable for long cable runs
  • Higher reliability for heavy-duty breakers and isolators
These voltages provide the best balance between safety and performance.

3. International Standardization

110V DC and 220V DC are globally accepted standards followed by:
  • Utilities
  • Transmission companies
  • EPC contractors
  • Export-oriented projects
They comply with:
  • IEC standards
  • IEEE recommendations
  • Utility technical specifications
This standardization ensures global compatibility, especially for export projects.

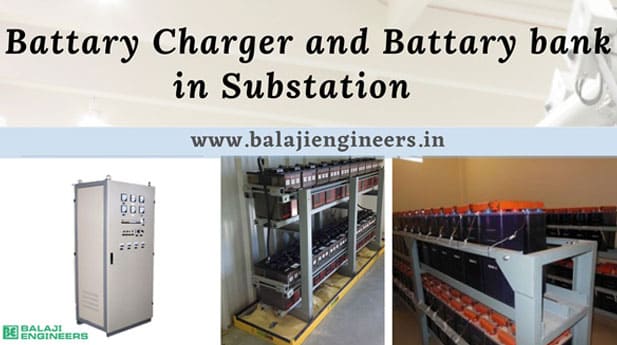

Battery Bank & Charger – The Heart of DC System

DC supply in substations is generated using:

 Battery Bank (Lead Acid / VRLA / Ni-Cd)

 Battery Charger (Float + Boost Mode)

How It Works :

  • Under normal conditions, charger supplies DC and charges batteries
  • During AC failure, battery bank instantly takes over
  • No interruption in protection or control functions
05
This makes the DC system the most critical safety backbone of a substation.

Role of DC Supply in Isolator & Interlocking Systems

Isolators are mechanical safety devices that must operate correctly under strict interlocking conditions.

DC supply is used for :

 Motor-operated isolator control

 Open / Close indication lamps

 Electrical interlocking with circuit breakers

 Earth switch operation

 Remote operation through SCADA

If DC control fails :

 Isolator operation becomes unsafe

 Interlocking logic may fail

 Maintenance personnel face serious risk

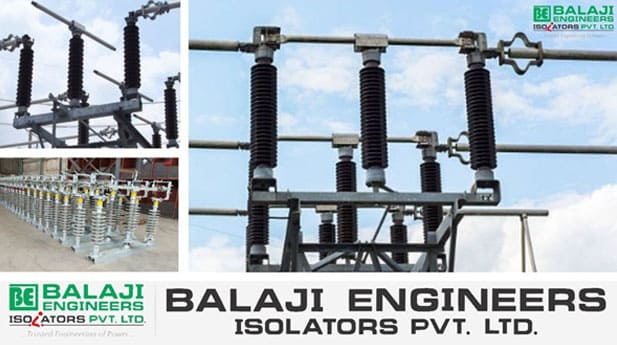

Importance of DC Compatibility in High-Quality Isolators

This is where engineering quality matters.

Balaji Engineers Isolators Private Limited designs and manufactures isolators that are:

  • Fully compatible with 110V DC & 220V DC control systems
  • Equipped with reliable motor mechanisms
  • Designed for precise electrical & mechanical interlocking
  • Suitable for AIS transmission and distribution substations
06

Why Utilities and EPCs Trust Balaji Engineers Isolators

Balaji Engineers Isolators Private Limited is a trusted manufacturer and exporter of isolator disconnectors from India, serving:

Transmission Substations

Distribution Substations

Solar & Wind Power Projects

Heavy Industries

Utility and EPC Projects

Key Strengths :

  • Voltage range: 11kV to 220kV
  • High current density & superior contact alignment
  • Robust design for harsh environments
  • Compliance with utility and international standards
  • Proven performance in domestic and export markets

Balaji Isolators are engineered with a deep understanding of DC control logic, interlocking safety, and substation reliability.

Why This Matters for Global Buyers & Export Projects

07

For international clients, reliability is non-negotiable.

Using isolators compatible with standardized DC control systems ensures:

  • Faster commissioning
  • Easy integration with existing panels
  • Compliance with global grid codes
  • Long-term operational safety

This is why Balaji Engineers Isolators are increasingly preferred in export-oriented substation projects.

110V DC and 220V DC control systems are not optional — they are essential.

They guarantee :

DC supply is used for :

Protection during faults

Safe isolator and breaker operation

Reliable interlocking

Operator and equipment safety

And when combined with well-engineered isolators, they form the backbone of a safe and dependable substation.

Balaji Engineers Isolators Private Limited continues to support the global power sector with reliable isolation solutions designed for modern DC-controlled substations.
