Transmission Substation vs Distribution Substation

Electric power systems rely on a well-structured network of substations that transform and distribute electricity safely and efficiently from generation plants to end users. Understanding the difference between transmission substations and distribution substations is crucial for power engineers, planners, and decision-makers — especially when selecting critical equipment like isolators for reliable operation.

What Is a Power Substation?

A substation is a key part of the electrical grid that adjusts voltage levels and manages the flow of electricity between generation, transmission, and distribution networks. Substations contain transformers, switches, circuit breakers, protective devices, and isolators that enable safe operation and maintenance.

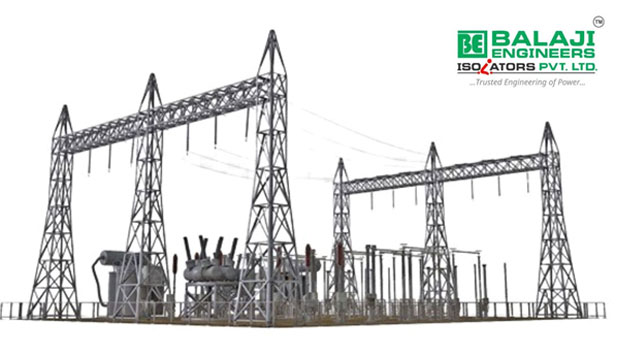

Transmission Substation (High-Voltage Backbone)

A Transmission Substation is designed for high-voltage power transfer over long distances, usually operating at voltages 66 kV and above. These substations are essential for linking power generation sources (like power plants or renewable energy farms) with regional or national grids.

Key Features

Voltage Level: Very High Voltage (VHV) — e.g., 66kV up to 220kV and beyond.
Function: Transmit bulk power with minimal losses over long distances.
Land & Scale: Larger area, complex switchyard configuration.
Equipment: Large transformers, breakers, protective relays, and high-voltage isolators

Isolator Use

In transmission substations, isolators such as 132 kV High Voltage Isolators and 220 kV Outdoor Isolators play a vital role in safely disconnecting circuits during maintenance or emergency operations.

Explore Balaji Engineers isolators for transmission substations :

132 kV High Voltage Isolator — ideal for EHV grids.
220 kV Outdoor Isolator — engineered for heavy-duty isolation in major transmission yards

Distribution Substation

A Distribution Substation takes high-voltage electricity from the transmission system and steps it down to safer voltage levels for local use. These substations are typically closer to towns, cities, and industrial clusters.

Key Features

Voltage Level: Medium to Low Voltage — e.g., 11 kV, 22 kV, 33 kV.
Function: Decreases high transmission voltages to distribution levels for consumers.
Proximity to Load Centers: Installed near residential, commercial, and industrial users.
Equipment: Distribution transformers, feeders, switchgear, and medium-voltage isolators.

Isolator Use

In distribution substations, products like 22 kV High Voltage Isolators, 33 kV Isolators, and 11 kV Isolators with Earth Blade are essential for sectionalizing circuits safely while supplying power locally.

Explore Balaji Engineers isolators for distribution networks

22 kV High Voltage Outdoor Isolator — perfect for distribution applications.
33 kV Substation Isolator — robust solution for medium-voltage sites.
11 kV Isolator with Earth Blade — ideal for local distribution and rural electrification.

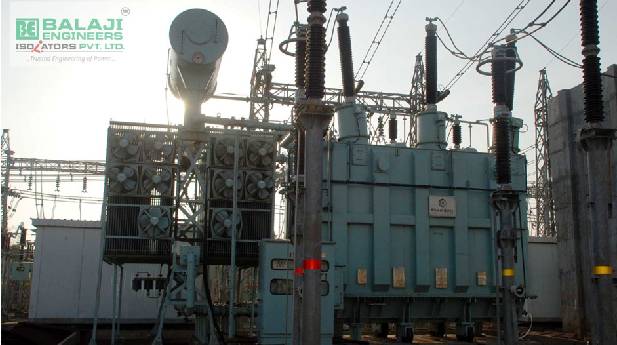

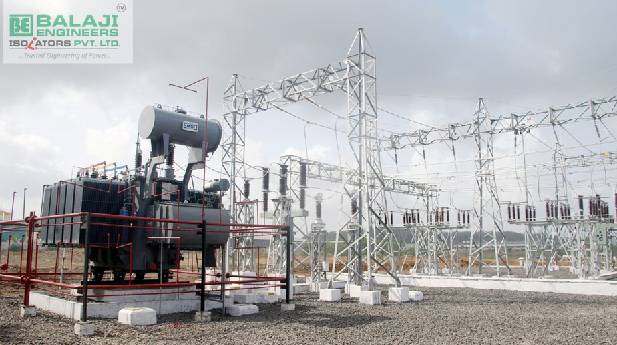

Power Transformer

Transmission vs Distribution Substation – Quick Comparison

Feature	Transmission Substation	Distribution Substation
Voltage Levels	≥ 66 kV (up to 220 kV+)	11–33 kV (Medium / Low)
Function	Bulk transfer of power	Step-down & delivery to consumers
Size & Complexity	Larger, complex	Smaller, simpler
Key Equipments	EHV isolators, breakers	MV isolators, transformers

Why Choosing the Right Isolators Matters

Isolators are manually operated disconnect switches that ensure a portion of the power system is safely de-energized for maintenance or emergency isolation. Their performance directly affects reliability and safety in both transmission and distribution substations.

Balaji Engineers Isolators are :

Designed and tested per IEC 62271-102 standards.
Available across a full range — 11 kV to 220 kV.
Suitable for transmission, distribution, and renewable substations.
