हम इस ELECTRICAL BLOG मे SUBSTATION EQUIPMENT कोणसे होते है और उनका उपयोग कैसे किया जात है ये देखने की कोशिश करेंगे इलेक्ट्रिकल EQUIPMENT’S ये उनके VOLTAGE LEVEL की हिसाब से जैसे 11KV ,22KV ,33KV 110KV ,220KV ,400 KV ,764 KV ये बिठाये जाते है , SUBSTATION ये PRIVATE CONSUMER के लिए भी INSTALL किया जाता है . जादातर SUBSTATION ये ELECTRICAL TRANSMISSION मे जहापर POWER तयार होती है और जहाँपर ये इस्तीमल होनी होती है वाहापर दोन्हो हि जगहपर बनाये जाते है . जब VOLTAGE को STEP UP (WHERE THE POWER IS STEPUP BY LOWER VOLTAGE TO HIGHER VOLTAGE) या STEPDOWN (WHERE THE POWER IS STEPDOWN BY HIGHER VOLTAGE TO LOWER VOLTAGE) करणा होता है वाहापर SUBSTATION का ERECTION किया जाता है . ELECTRICAL SUBSTATION मे POWER का METERING भी किया जाता है जो बहुत ही महत्वपूर्ण होता है . POWER BALANCING करणे के लिये भी SUBSTATION का उपयोग किया जाता है ।

TYPES OF SUBSTATION

AC SUBSTATIONS कई तरह के होते हैं. उन्हें विभिन्न मानदंडों के आधार पर विभिन्न प्रकारों में वर्गीकृत किया जाता है SOME OF THEM ARE DISCUSSED BELOW.

BASED ON THE CONSTRUCTION AND INSTALLATION OF SWITCHGEAR, ELECTRIC SUBSTATIONS ARE OF TWO TYPES.

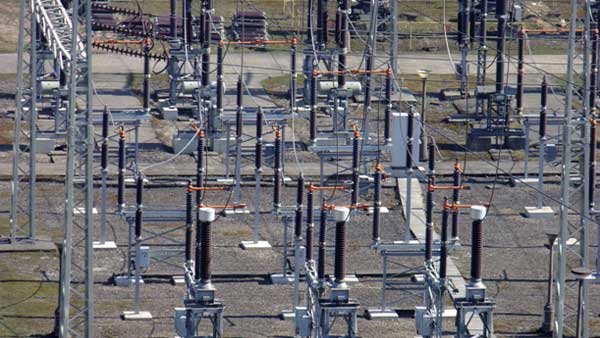

AIR-INSULATED SWITCHGEAR SUBSTATION (OPEN TERMINAL SUBSTATION)

GAS-INSULATED SWITCHGEAR SUBSTATION (GIS SUBSTATION)

BASED ON TRANSMISSION VOLTAGE AND FUNCTION, THE ELECTRIC SUBSTATION IS CLASSIFIED INTO TWO TYPES.

TRANSMISSION SUBSTATION

DISTRIBUTION SUBSTATION

SUBSTATIONS ARE CLASSIFIED INTO VARIOUS TYPES DEPENDING UPON THEIR APPLICATIONS, NAMELY INDOOR SUBSTATION, OUTDOOR SUBSTATION, GENERATION SUBSTATION, CONVERTER SUBSTATION, DISTRIBUTION SUBSTATION, SWITCHING SUBSTATION, TRANSMISSION SUBSTATION,

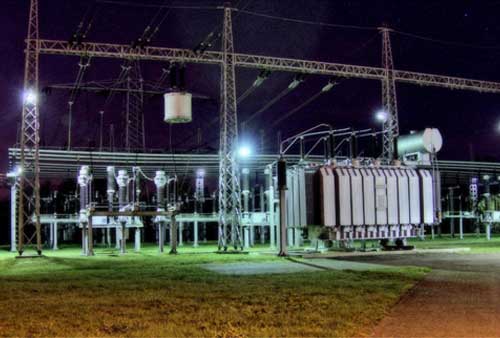

A SUBSTATION IS A COMBINATION OF VARIOUS ELECTRICAL EQUIPMENT, WITH THE MOST IMPORTANT ONES BEING TRANSFORMERS, CONDUCTORS, INSULATORS, ISOLATORS, CIRCUIT BREAKERS, RELAYS, LIGHTNING ARRESTERS, BUS BARS, AND CAPACITOR BANKS.) अब हम ELECTRICAL SUBSTATION EQUIPMENT के बारे मैं देखते है , SUBSTATION मे USE किये जाने वाले EQUIPMENT’S को ELECTRICAL MAJOR EQUIPMENT’S भी कहते है . जाणते है EQUIPMENT’S के FUNCTIONS के बारे मे

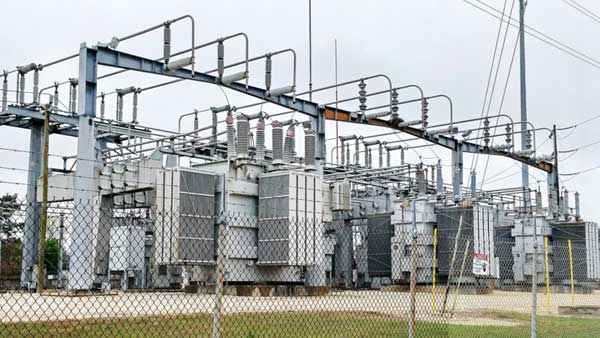

TRANSFORMERS

TRANSFORMERS हैं जिनका उपयोग VOLTGE को बदले के लिए किया जाता है। इन ट्रांसफॉर्मर का उपयोग TRANSMISSION और GENRATION लिए सिस्टम के VOLTAGES स्तर को UP या DOWN करने के लिए किया जाता है। उनके डिजाइन, उद्देश्य, उपयोग और स्थापना के आधार पर TRANSFORER TYPE से FINAL किया जाता है । TRANSFORMER ये OLTC,BUCOZ RELAY,RADITORS,WINDING ,OIL,TANK इन सबी से बना होता है. ट्रांसफार्मर ये 220/110kv, 220/33kv ,110/33Kv ,33/11 kv इस तरह की रेटिंग में SUB STATION में बिठाए जाते हैं, हमेशा TRANSFORMER का जो रेटिंग होता है वह बहुत ही महत्वपूर्ण होता है.

उदाहरणार्थ, 250 KVA कॅपॅसिटी चा DG set आहे व त्याचा पवार फॅक्टर 0.8 आहे. तर खालील formula वरून आपण KW rating कसं calculate करावं ते पाहू,

ELECTRICAL CONDUCTORS

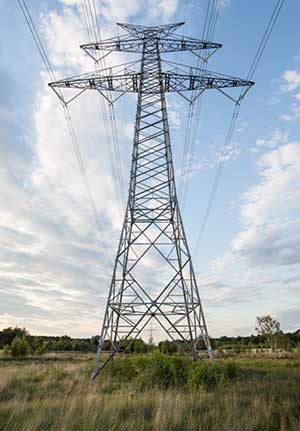

अब आगे बढते है, CONDUCTORS धातुओं से बने होते हैं जो विद्युत ENERGY को एक जगह से दुसरे जगह ट्रान्सफर करणे मे इस्तेमाल केले है । THIS HELPS IN POWER TRANSMISSION OR ELECTRIC ENERGY TRANSFER FROM GENERATING STATION TO CONSUMER POINT, WHERE POWER IS CONSUMED BY THE LOADS. THE MOST COMMONLY USED CONDUCTORS USED IN POWER SYSTEMS ARE THOSE MADE OF ALUMINUM.

Wolf – AREA (mm2)150 Current Carrying Capacity 470

Panther – AREA (mm2) 200 Current Carrying Capacity 560

Zebra – AREA (mm2) 420 Current Carrying Capacity 860

Moose – AREA (mm2) 520 Current Carrying Capacity 980

ये कुछ CONDUCTORS के TYPES है जो SUB STATION मैं COMMEONLY USE किये जाते है .

WHICH CONDUCTOR MAKES ARE APPROVED IN SUBSTATION?

APAR, GUPTA POWER INFRASTRUCTURE, KJV ALLOY, HIND ALUMINIUM, STOCKIEST BALAJI ENGINEERS KOLHAPUR

INSULATORS

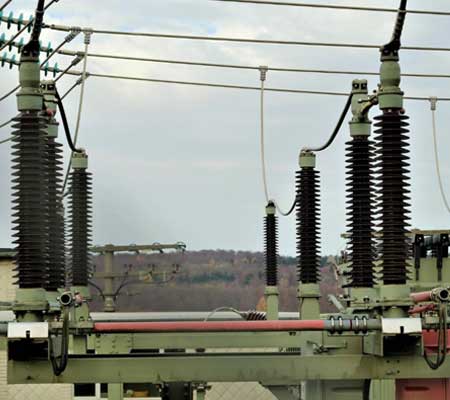

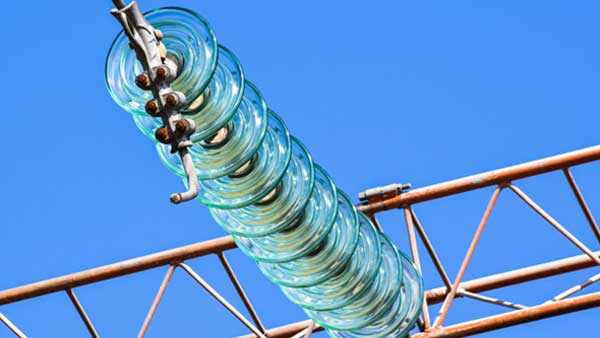

INSULATORS, UNLIKE CONDUCTORS, DO NOT ALLOW FREE MOVEMENT OF ELECTRONS OR ELECTRIC CHARGE THROUGH THEM. यही कारण है कि इंसुलेटर अपने HIGH RESISTANCE के साथ बिजली का विरोध करते हैं, और शॉर्ट सर्किट से बचने के लिए कंडक्टर के साथ बिजली के खंभों को खड़ा करते समय इन्सुलेशन के लिए उपयोग किया जाता है. VARIOUS TYPES OF INSULATORS INCLUDE SUSPENSION, DISK INSULATOR, POST INSULATOR, BUS POST INSULATOR, STAY INSULATOR, PIN INSULATOR, STRAIN INSULATOR, DISK INSULATOR, AND SHACKLE INSULATORS.

INSULATORS ये दो TYPES के होते है

1) POLYMER
2) PORCELAIN

SUBSTATION और TRNASMISSION LINE मै HIGH QUALITY INSULATORS USE करणे होते है जिस से POWER TRNASMISSION ये WITHOUT TRIPING CONTINOUSLY चालता है .

INSULATORS

WHICH INSULATOR MAKES ARE APPROVED IN SUBSTATION?

BHEL, ADITYA BIRLA INSULATORS, SARAVANA GLOBAL STOCKIEST BALAJI ENGINEERS KOLHAPUR

DISCONNECTOR ISOLATOR IN SUBSTATION

ISOLATORS ARE MANUALLY OPERATED MECHANICAL SWITCHES THAT ISOLATE THE FAULTY SECTIONS OR THOSE SECTIONS OF CONDUCTORS OR CIRCUITS THAT NEED TO BE REPAIRED, TO AVOID THE OCCURRENCE OF HARSHER FAULTS. THE VARIOUS TYPES OF ISOLATORS USED IN DIFFERENT APPLICATIONS INCLUDE SINGLE-BREAK, DOUBLE-BREAK, LINE, AND BUS ISOLATORS.)

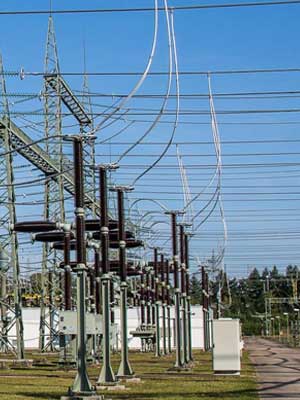

DISCONNECTORS (ISOLATORS) ये EQUIPMENT ये OFF-LOAD होते है जो ISOLATION करते है ,जिसका उपयोग ये MAINTENANCE के समय पर ISOLATE करणे के लिये करते है FAULTY EQUIPMENT FROM OTHER LIVE EQUIPMENT.

AT HIGHER VOLTAGES, ROTATING CENTER POST, DOUBLE END ROTATING POST, VERTICAL BREAK, AND PANTOGRAPH TYPE DISCONNECTORS ARE MORE COMMON. AIR BREAK SWITCHES ARE USED IN LOWER VOLTAGE TO DISCONNECT ON LOAD. DISCONNECTORS ये USUALLY INTERLOCKED होते है WITH THE ASSOCIATED CIRCUIT BREAKER TO PREVENT ANY ATTEMPT BEING MADE TO INTERRUPT LOAD CURRENT. DISCONNECTORS ARE NOT DESIGNED TO BREAK FAULT CURRENT ALTHOUGH SOME DESIGNS WILL MAKE FAULT CURRENT.

अधिकांश DISCONNECTORS ये A MANUAL DRIVE MECHANISM OR MOTOR-OPERATED DRIVE MECHANISM AND THE APPROPRIATE DRIVE METHOD MUST BE SELECTED FOR A PARTICULAR DISCONNECTOR IN A PARTICULAR SUBSTATION. FOR EXAMPLE, IN A REMOTELY CONTROLLED मानवरहित DOUBLE BUSBAR SUBSTATION THE BUSBAR SELECTOR DISCONNECTORS WOULD BE MOTOR OPERATED TO ALLOW ‘ON LOAD’ BUSBAR CHANGES WITHOUT A SITE VISIT BEING REQUIRED. DISCONNECTOR MECHANISMS INCORPORATE A SET OF AUXILIARY SWITCHES FOR REMOTE INDICATION OF DISCONNECTOR POSITION, ELECTRICAL INTERLOCKING, AND CURRENT TRANSFORMER SWITCHING FOR BUSBAR PROTECTION.)

11 kv DISCONNECTOR ISOLATOR 33 kv DISCONNECTOR ISOLATOR 145 kv DISCONNECTOR ISOLATOR 220 kv DISCONNECTOR ISOLATOR 400 kv DISCONNECTOR ISOLATOR

ISOALTOR ALGINMENT ये बहुत ही IMPORTNET होती है SPARE PARTS यांनी ACCESARIES का खास MAINTENANCE KARNA पडता है . ISOALTOR ये WITH EARTH BLADE और WITHOUT EARTH BLADE दोनो TYPES मे USE किये जाते है

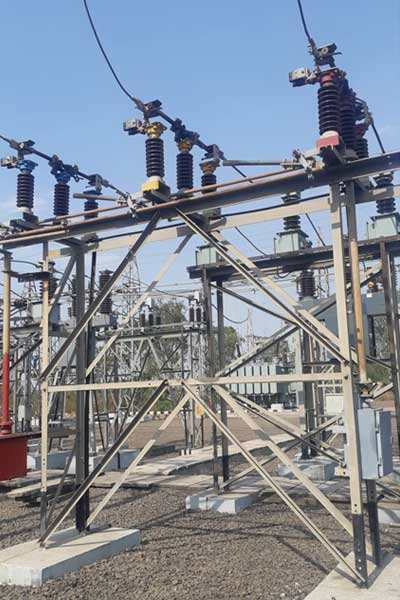

33KV DISCONNECTOR ISOLATOR BALAJI MAKE

WHICH DISCONNECT SWITCH / ISOLATOR MAKE IS APPROVED IN SUBSTATION?

BALAJI ENGINEERS,(BALAJI MAKE) KOLHAPUR MAHARASHTRA

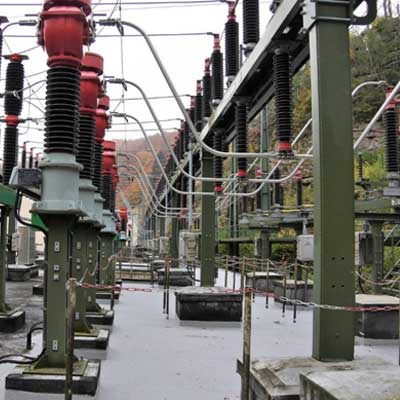

SUBSTATION CIRCUIT BREAKERS

SHORT CIRCUITS और OTHER FAULTS, THE FAULTY SECTIONS ARE DISCONNECTED AUTOMATICALLY BY CIRCUIT BREAKERS TO PROTECT THE SUBSTATION AND ITS COMPONENTS FROM OVERCURRENTS OR LOAD. जब FAULT IS RECTIFIED करते है , सर्किट को फिर से शुरु किया जाता है. DIFFERENT TYPES OF CIRCUIT BREAKERS ARE DESIGNED BASED ON DIFFERENT CRITERIA AND USAGE, WITH THE MOST COMMONLY USED ONES BEING 11 KV,33 KV,110 KV,220 KV OUTDOOR TYPE VACUUM CIRCUIT BREAKERS, AND 11 KV,33 KV,110 KV,220 KV,400 KV SF6 CIRCUIT BREAKERS.

WHICH SUBSTATION CIRCUIT BREAKERS MAKE IS APPROVED IN SUBSTATION?

ABB, VADODARA, GE T&D, CHENNAI, CG POWER & IND. SOLUTION LTD., NASHIK SIEMENS, AURANGABAD STOCKIEST BALAJI ENGINEERS KOLHAPUR

Conventional C&R Panel for Augmentation / Bay extension

C&R Panel ये SENSATIVE CONTROL DEVICE होता है जो MEJOR EQUIPMENTS को CONTROL करणे काम मी आता है , C&R Panel ये SUBSTATION CONTROL ROOM INTALL किया जाता है , EQUIPMENT और SUBSTAION SEPECIFICATION REQUIEMENT के ACCORDING C&R Panel को फायनल किया जाता है

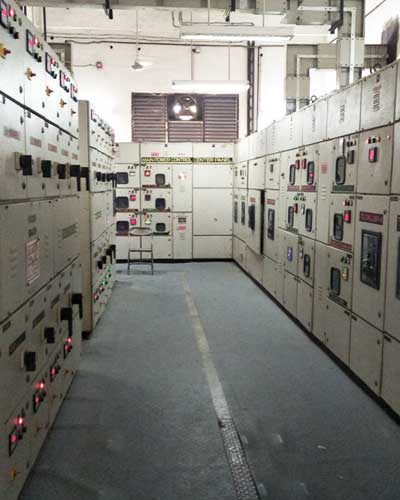

CONTROL AND RELAY PANEL ( C&R PANEL )

WHICH C&R PANEL MAKE IS APPROVED IN THE SUBSTATION?

ABB, ALSTOM, AMARARAJA, ASHIDA, AVANA, C&S, CTR, GE, SCHNEIDER, SCOPE, SIEMENS, VENSON

SUBSTATION RELAY

RELAYS

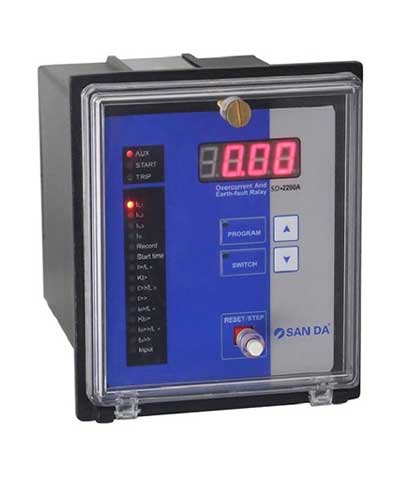

RELAYS का उपयोग DISCONNECTING CIRCUITS MANUALLY OR AUTOMATICALLY के लिए होता है . THEY CONSIST OF EXCITED OR ENERGIZED COILS CONNECTED IN SUCH A WAY THAT THE CONTACTS OF THE RELAY WHEN CLOSED ACTIVATE THE RELAY TO BREAK OR MAKE THE CIRCUIT CONNECTION. कई प्रकार के रिले होते हैं, RELAYS LIKE VOLTAGE, AUXILIARY, OVER CURRENT, DIRECTIONAL, RECLOSING, AND MICROCONTROLLER RELAYS. RELAYS ये बहुतही SENSATIVE DEVICES होते है

WHICH RELAYS MAKES ARE APPROVED IN THE SUBSTATION?

ABB, BENGALURU, GE T&D, CHENNAI ZIV AUTOMATION INDIA P.LTD, CTR, NASHIK (WITH ROCON, BULGARIA) GE, BENGALURU, NR ENERGY, SCHNEIDER, SIEMENS STOCKIEST BALAJI ENGINEERS KOLHAPUR.

LIGHTNING ARRESTERS

IN CASES OF LIGHT SURGES, A HIGH VOLTAGE PASSES THROUGH ALL THE ELECTRICAL COMPONENTS OF A SUBSTATION, CAUSING THEM DAMAGE. इस समस्या से बचने के लिए, LIGHTNING ARRESTERS ARE PLACED TO PASS THE LIGHTNING SURGES TO THE EARTH.

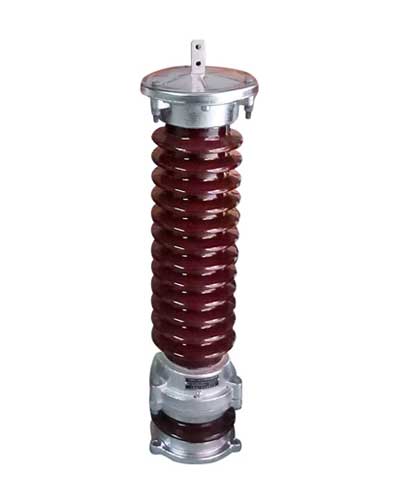

LIGHTNING ARRESTERS

WHICH LIGHTENING ARRESTERS MAKE ARE APPROVED IN SUBSTATION?

CG POWER & IND. SOLUTION LTD. LAMCO, HYDERABAD, OBLUM, HYDERABAD RAYCHEM-RPG STOCKIEST BALAJI ENGINEERS KOLHAPUR.

CURRENT TRANSFORMER (CT )

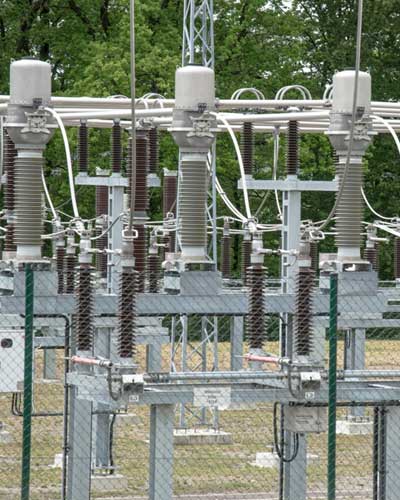

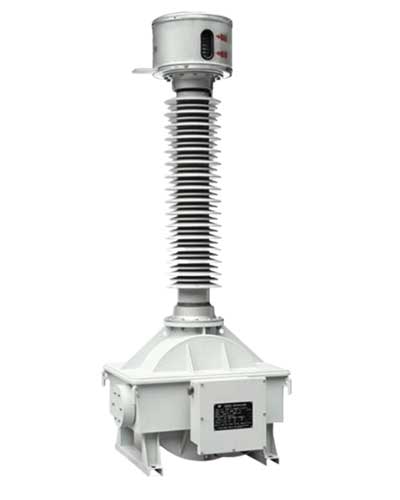

ये एक SUBSTATION EQUIPMENT है जो CONVERTS THE PRIMARY POWER SIGNAL TO MANAGEABLE VALUES FOR METERING SYSTEMS, CURRENT TRANSFORMERSये जादातर MEASURING OF CURRENT के लिये SUB STATION मैं USE किये जाते है.

CURRENT (CT) AND POTENTIAL TRANSFORMERS (PT) SUPPLY THE INTELLIGENCE FOR MEASURING POWER FLOWS AND THE ELECTRICAL INPUTS FOR THE OPERATION OF PROTECTIVE RELAYS ASSOCIATED WITH THE TRANSMISSION AND DISTRIBUTION CIRCUITS OR EQUIPMENT SUCH AS POWER TRANSFORMERS. CT OUTDOOR OILCOOLED TYPE की SUBSTATION मे ERECTION की जाती है ,CT ये SUPPORT STRUCTURE पर ERECT की जाती है . CT का SUPPLY ये HT TOD METER , ABT METER को दिया रहता है , ABT METER ये METERING CUBICAL या METERING ENCLOSER (METERING BOX ) के साथ CONTROL ROOM मे बिठाया जाता है . CT ये TESTING करके INSTALL की जाती है . CT CONNECTORS के साथ CONDUCTOR को कनेक्ट किया होता है .

WHICH CURRENT TRANSFORMER MAKES ARE APPROVED IN SUBSTATION?

CG POWER & IND. SOLUTION LTD., NASHIK, ITC, MEHRU, PRAGATI ELECTRICALS, TOSHIBA, HYDERABAD, ABB STOCKIEST BALAJI ENGINEERS KOLHAPUR.

POTENTIAL TRANSFORMER (PT )

HIGH VOLTAGES IN THE SUBSTATION ARE MEASURED BY REDUCING THE VOLTAGE PROPORTIONATELY WITH EQUIPMENT CALLED A POTENTIAL TRANSFORMER.

VOLTAGE TRANSFORMERS (POTENTIAL TRANSFORMERS ) ARE REQUIRED TO PROVIDE ACCURATE VOLTAGES FOR METERS USED FOR BILLING INDUSTRIAL CUSTOMERS OR CONNECTING UTILITY COMPANIES.

P T (POTENTIAL TRANSFORMER) OUTDOOR OILCOOLED TYPE की SUBSTATION मे ERECTION की जाती है ,P T ये SUPPORT STRUCTURE पर ERECT की जाती है . P T का SUPPLY ये HT TOD METER , ABT METER को दिया रहता है , ABT METER ये METERING CUBICAL या METERING ENCLOSER (METERING BOX ) के साथ CONTROL ROOM मे बिठाया जाता है . P T ये TESTING करके INSTALL की जाती है . CT CONNECTORS के साथ CONDUCTOR को कनेक्ट किया होता है . SUBSTATION मे CT PT ये CURRENT और VOLTAGE COUNT करणे की महत्वपूर्ण भुमिका निभाते है .

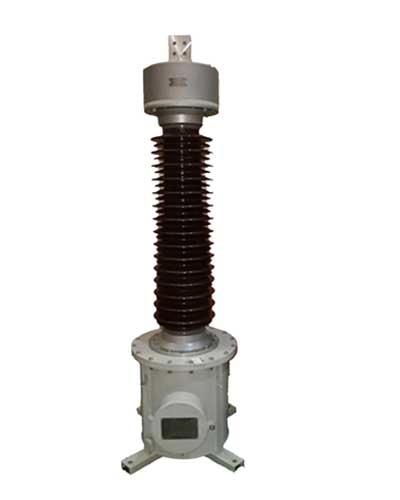

POTENTIAL TRANSFORMER (PT )

WHICH POTENTIAL TRANSFORMER (PT ) MAKES ARE APPROVED IN THE SUBSTATION?

CG POWER & IND. SOLUTION LTD., NASHIK, ITC, MEHRU, PRAGATI ELECTRICALS, TOSHIBA, HYDERABAD, ABB STOCKIEST BALAJI ENGINEERS KOLHAPUR.

BUS BARS ALUMINIUM TUBE

BUS BARS ARE CURRENT-CARRYING CONDUCTORS THAT HAVE MULTIPLE NUMBERS OF INCOMING AND OUTGOING LINE CONNECTIONS. THESE ARE CLASSIFIED INTO SINGLE BUS, DOUBLE BUS, AND RING BUS BARS.

WHICH BUS BAR ALUMINUM TUBE MAKES ARE APPROVED IN THE SUBSTATION?

HINDALCO STOCKIST BALAJI ENGINEERS KOLHAPUR.

CAPACITOR BANKS IN SUBSTATION

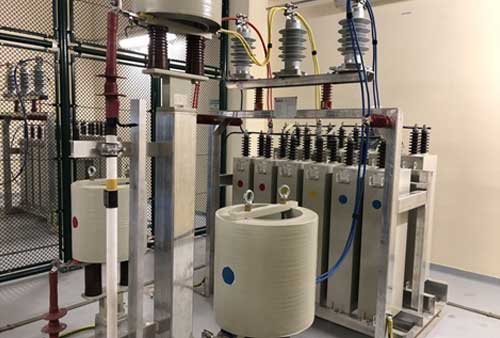

CAPACITOR BANKS ARE SETS OF IDENTICAL CAPACITORS CONNECTED IN SERIES OR PARALLEL WITHIN AN ENCLOSURE, USED FOR POWER FACTOR CORRECTION AND PROTECTION OF SUBSTATIONS. BANKS ये SOURCES होते है REACTIVE POWER के, और ये REDUCE करते है PHASE DIFFERENCE BETWEEN VOLTAGE AND CURRENT को. वे पावर फैक्टर को बनाए रखने और पावर लैग की समस्याओं को ठीक करने के लिए सबसे अच्छे उपकरण हैं।

CAPACITOR BANKS IN SUBSTATION

WHICH CAPACITOR BANKS MAKE ARE APPROVED IN SUBSTATIONS?

ABB, GE T&D, CG POWER & IND. SOLUTION LTD., MEHRU, SIEMENS STOCKIEST BALAJI ENGINEERS KOLHAPUR.

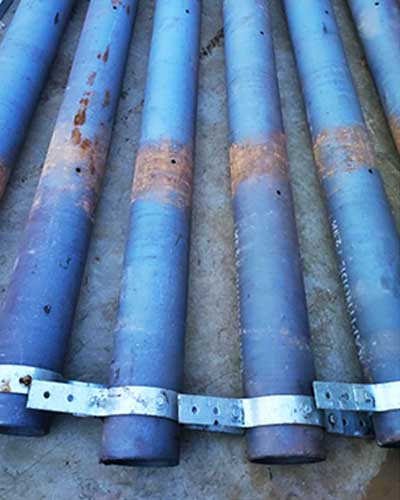

C.I.PIPE EARTHING SET IN SUBSTATION

C. I. PIPE EARTHING SET

CI EARTHING ये SUBSTATION मे 150 MM X 3 METER ELECTRICAL BOARD STANDERD के SPECIFICATION नुसार INSTALL किया जाता है . EARTHING POWDER के साथ ERECT किया होता है , GI / COPPER STRIP के साथ EQUIPMENTS को CONNECT किया जाता है .

BELOW 1.0 OHEM RESULTS ये आपेक्षीत होते है जिस से SUBSTATION EQUIPMENTS का PROTECTION हो सके .

WHICH C I EARTHING MAKES ARE APPROVED IN SUBSTATION?

PERFECT EARTH ELECTRODE, KOLHAPUR MAHARASHTRA

SUBSTATION CLAMP AND CONNECTORS

SUBSTATION मे CLAMP AND CONNECTORS ये CONDUCTOR को EQUIPMENTS के साथ जोडणे के लिये USE करते है , CLAMP AND CONNECTORS ये ELECTRICAL BOARD SPECIFICATION के नुसार और SUBSTATION के REQUIREMENT कै नुसार ERECT किये जाते है

CT CONNECTOR, ISOLATOR CONNECTOR, BREAKER CONNECTOR, PALM CONNECTOR, T CONNECTOR, WADGE CONNECTOR, BUS CONNECTOR, BI METALIC CONNECTOR, String Hardware CONNECTOR,220KV PG CLAMP & T CONNECTOR, RIGID & FLEXIBLE SPACER & BUS COUPLER CONNECTOR, ALL SUBSTATION CONNECTORS ये लगाये जाते है,

SUBSTATION CLAMP AND CONNECTORS

WHICH SUBSTATION CLAMP AND CONNECTOR MAKES ARE APPROVED IN THE SUBSTATION?

BALAJI ENGINEERS, KOLHAPUR MAHARASHTRA

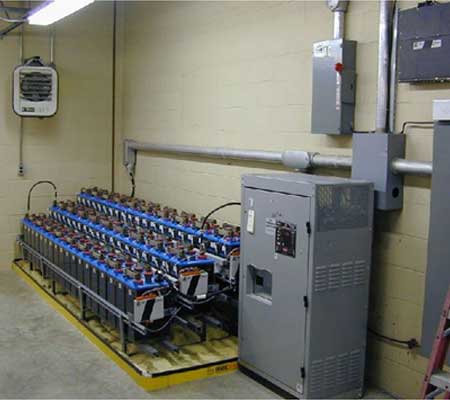

BATTERIES AND BATTERY CHARGER

CONTROL BATTERIES SUPPLY ENERGY TO OPERATE CIRCUIT BREAKERS AND OTHER EQUIPMENT. SUBSTATION BATTERY BANK

सिस्टम की गड़बड़ी और आउटेज की अवधि के दौरान उपकरणों को संचालित करना संभव बनाने के लिए स्रोत के रूप में स्टोरेज बैटरी के साथ डीसी कंट्रोल सिस्टम का उपयोग करना आवश्यक है।सभी आवश्यक कार्यों के लिए पर्याप्त आपातकालीन शक्ति प्रदान करने के लिए बैटरी चार्जर्स का उपयोग स्वचालित रूप से बैटरी को पूरी तरह से चार्ज रखने के लिए किया जाता है।

WHICH BATTERIES AND BATTERY CHARGER MAKES ARE APPROVED IN THE SUBSTATION

AMARA RAJA, TIRUPATI. HBL, EXIDE INDUSTRIES LIMITED, ENERSYS INDIA BATTERIES (P) LTD STOCKIEST BALAJI ENGINEERS KOLHAPUR.

GANTRY AND EQUIPMENT SUPPORT STRUCTURE

GANTRY AND EQUIPMENT SUPPORT STRUCTURE ये HIGH QUALITY STEEL से बने होते है और ये HOT DIP GALVANIZING किया होता है ताकी RUSTING से बचा जा सके . SUBSTATION मे ANGLE CHAHHEL NUTBOLTS इनका DRAWING के हिसाब से ERECTION किया जाता है . FOUNDATION BOLTS ये PROPER SAIZES के HOT DIP GALVANIZING कर के INSTALTION कीये जाते है . STRUCTURE मे GANTRY STRUCTURE CT PT STRUCTURE, ISOLATOR STRUCTURE LA STRUCTURE, BUS POST INSULATOR STRUCTURE, CIRCUT BREAKER STRUCTURE, BUS GANTRY SUPPORT STRUCTURE TOWER STRUCTURE 33KV,110KV,220KV,400 VK

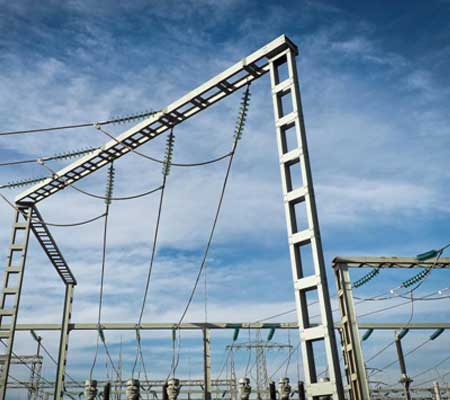

GANTRY AND EQUIPMENT SUPPORT STRUCTURE

WHICH GANTRY AND EQUIPMENT SUPPORT STRUCTURE MAKES ARE APPROVED IN THE SUBSTATION?

BALAJI ENGINEERS, KOLHAPUR

MARSHALING BOX

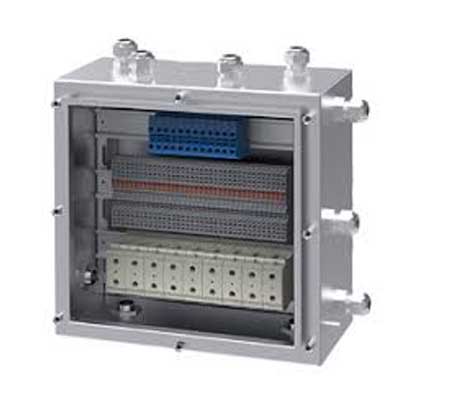

MARSHALING BOXES/ KIOSKS / JUNCTION BOXES का उपयोग ये SUBSTATION SWITCHYARDS PROVIDED WITH TERMINAL BLOCKS TO WHICH CONTROL CABLES ARE CONNECTED. MARSHALING BOX ये GROUPING OF I/OS. THE MARSHALLING PANEL IS PLACED BETWEEN THE DCS SYSTEM PANEL AND FIELD INSTRUMENTS.

WHICH MARSHALING BOX MAKES ARE APPROVED IN THE SUBSTATION?

BALAJI ENGINEERS, KOLHAPUR MAHARASTRA IS APPROVED FOR MARSHALING BOX.

FIRE FIGHTING EQUIPMENT

FIRE FIGHTING EQUIPMENT IS PALYS MEJOR ROLE IN SUBSTATION. TO MAINTAIN SAFETY IN THE SUBSTATION ADEQUATE FIRE EQUIPMENT IS KEPT READY. SUBSTATION मे HIGH VOLTAGE PASS होते रहता है । इसके कारण FIRE की संभावना किसी UNFORTUNATE FAULTY EQUIPMENT से उत्पन्न हो सकती है । FIRE FIGHTING EQUIPMENTS को USE करणे की सही TRAINGING ये OPERATER और STAFF को दी जानी चाहिये .

FIRE FIGHTING EQUIPMENT

WHICH FIRE FIGHTING EQUIPMENT MAKES ARE APPROVED IN THE SUBSTATION?

KANADIA, BHAVNAGAR, SWASTIK SYNERGY, KHALAPUR, A FE FIRE, MINIMAX, ZENITH STOCKIEST BALAJI ENGINEERS, KOLHAPUR

POST INSULATOR

पोस्ट इंसुलेटर का उपयोग ट्रांसफॉर्मर सब-स्टेशन यार्ड में SUPPORTS FOR BUS-BARS के रूप में,SWITCHGEAR AS SUPPORT FOR BREAKERS में और कैपेसिटर बैंकों के लिए किया जाता है। ये इंसुलेटर आमतौर पर CONDUCTOR SUPPORT के लिये किया जाता है ।

WHICH POST INSULATOR MAKES ARE APPROVED IN THE SUBSTATION?

Aditya Birla, IEC, Sarvana, WSI, CJI, Khurja STOCKIEST BALAJI ENGINEERS, KOLHAPUR

MS FLAT / GI FLAT

MS FLAT / GI FLAT ये SUBSTATION मे EARTHING के लिये उपयोग मे लाया जाता है , 25/3, 50/5 इन SIZES मे प्रत्येक EQUIPMENT को ERECT किया होता है , MS FLAT / GI FLAT का ERECTION करते समय इसके TIGHTNING का खास ध्यान देना पडता है . HOT DIP GALAINSED FLAT IN SUBSTATION ये उपयोग मे लाया जाता है .

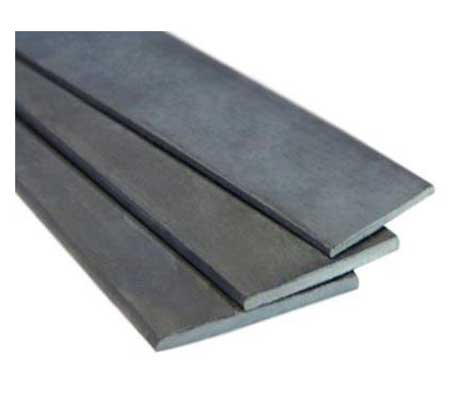

MS FLAT / GI FLAT

WHICH MS FLAT / GI FLAT MAKES ARE APPROVED IN THE SUBSTATION?

BALAJI ENGINEERS, KOLHAPUR, MAHARASTRA

INSULATOR HARDWARE & CONDUCTOR ACCESSORIES

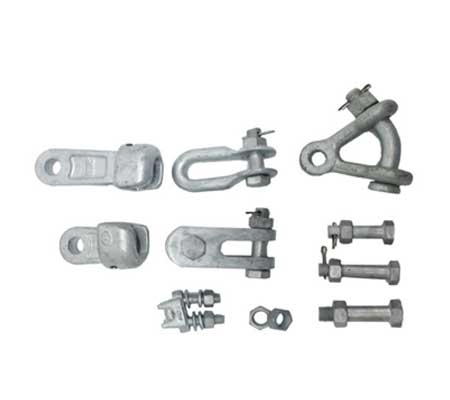

INSULATOR HARDWARE & CONDUCTOR ACCESSORIES IN SUBSTATION ये TOWER LINE और SUBSTATION के बहुत ही महत्वपूर्ण अंग होता है । HARDWARE और ACCESARIES ये ACCURATE और QUALITY के अनुसार होणे चाहिये ताकी हमे UNENTRPTED SUPPLY मिल सके .

WHICH INSULATOR HARDWARE & CONDUCTOR ACCESSORIES MAKES ARE APPROVED IN THE SUBSTATION?

BALAJI ENGINEERS, KOLHAPUR, MAHARASTRA

TRANSFORMER OIL

TRANSFORMER OIL ये SUBSTATION मे POWER TRANSFORMER के लिये और और OIL COOLED CTPT के लिए HIGH QUALITY और योग्य BDV VALUE वाला TRANSFORMER OIL ये USE किया जाता है ,

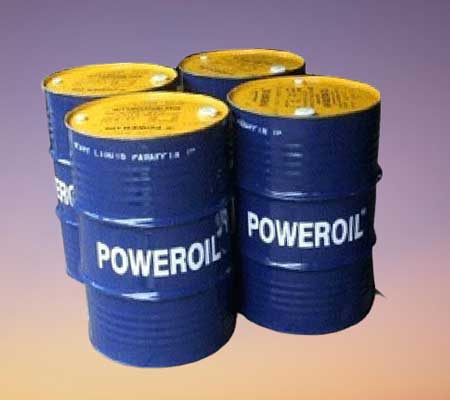

TRANSFORMER OIL

WHICH TRANSFORMER OIL MAKES ARE APPROVED IN THE SUBSTATION?

APAR INDUSTRIES LTD., RAJ PETRO SPECIALTIES LTD SUPPLIER BALAJI ENGINEERS KOLHAPUR

LIGHTING MAST IN SUBSTATION

ADEQUATE LIGHTING IS REQUIRED IN THE SUBSTATION TO VIEW THE EQUIPMENT AND GET CLEAR VISIBILITY AT THE TIME OF OPERATION.

WHICH LIGHTING MAST IN SUBSTATION MAKES ARE APPROVED IN THE SUBSTATION?

PHILIPS ,BAJAJ , WIPRO STOCKIEST BALAJI ENGINEERS

NUT BOLTS

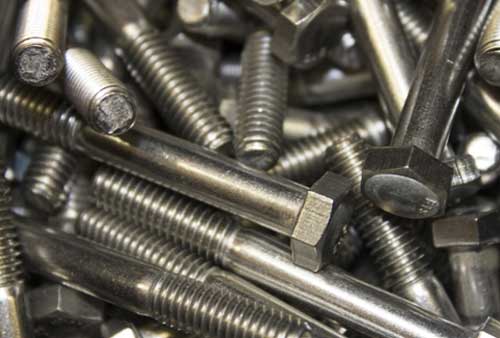

HIGH-QUALITY HOT-DIP GALVANISED NUT BOLTS ARE USED IN SUBSTATIONS, IN ELECTRICAL CONTACT POINTS SS NUT BOLTS ARE USED

NUT BOLTS

WHICH NUT BOLTS MAKE ARE APPROVED IN THE SUBSTATION?

STOCKIEST BALAJI ENGINEERS, KOLHAPUR, MAHARASHTRA

CABLE TRAYS

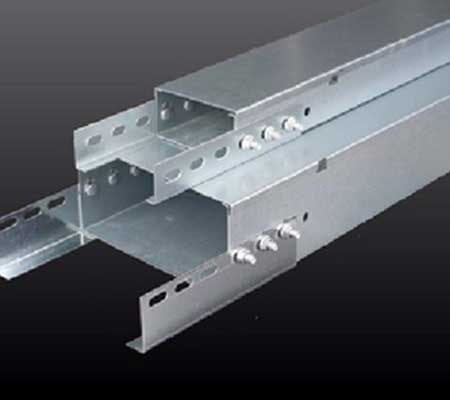

CABLE TRAYS मैकेनिकल सपोर्ट सिस्टम हैं जो ELECTRICAL CABLES, RACEWAYS, AND INSULATED CONDUCTORS USED FOR ELECTRIC POWER DISTRIBUTION, CONTROL, SIGNAL INSTRUMENTATION, AND COMMUNICATION. HOT-DIP GALVANISED CABLE TTRAYSARE USED IN SUBSTATION

WHICH CABLE TRAY MAKES ARE APPROVED IN THE SUBSTATION?

BALAJI ENGINEERS, KOLHAPUR, MAHARASHTRA
