Common Control Wiring Mistakes in Substations

In every electrical substation, control wiring is the silent force that ensures protection, communication, and coordination between equipment. While high-voltage devices grab attention, a minor mistake in substation control wiring can trigger major failures — tripping a feeder, blocking protection logic, or causing unsafe manual operations.This blog explores the most common mistakes engineers and technicians make during substation control wiring — and how to avoid them using industry best practices.

1. Inadequate Understanding of the Wiring Diagram

Many errors begin with a poor interpretation of the substation control wiring diagram. Often, teams fail to verify the exact logic of –

Interlocking schemes (Isolator–VCB interlocks)
Protection tripping circuits (through numerical relays)
Synchronizing and breaker closing logic

Tip – Always verify the latest approved drawing before wiring and cross-reference it with the control panel layout and actual device terminal blocks

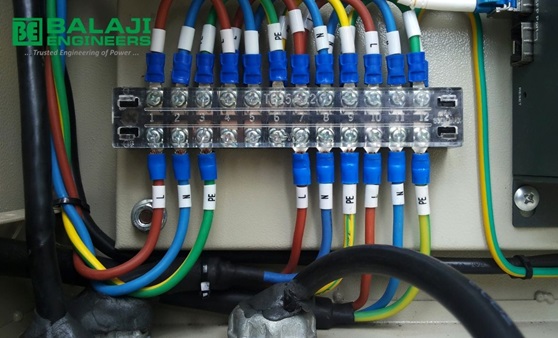

2. Wrong Core Identification & Ferruling

Improper ferrule numbering or mismatched terminal markings can confuse protection circuits or even reverse control logic.

Example – Connecting TNC switch wiring wrongly due to swapped ferrule tags can lead to unintended breaker closing.
Tip – Use standard ferrule coding systems, such as panel ID + terminal number, and adopt color codes per IS/IEC norms. Pre-printed ferrules speed up panel QA.

3.Ground Loops & Missing Earth Termination

In substations, poor earthing in control wiring can induce signal noise, relay malfunction, or even burn out PLC/SCADA I/O cards.

Tip – Always terminate the control circuit shield at one end only (typically the panel side). Use proper earth busbars inside control panels and route shielded cables carefully.

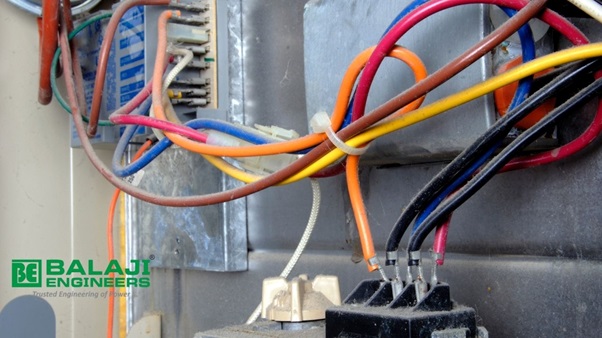

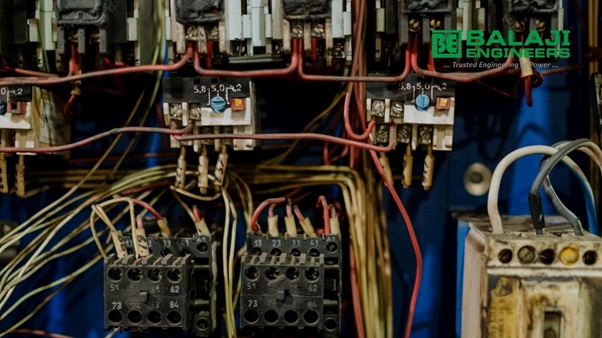

4. Overcrowding in Cable Trenches and Control Panels

When control cables are bundled without separation or labels, it becomes difficult to trace faults. Overheating and EMI (Electromagnetic Interference) risks increase in GIS and compact substations.

Tip – Use separate trunking for AC/DC circuits and analog/digital loops. Follow cable derating rules in panel design and keep spare terminal capacity.

5. Missing Interlock Logic for VCB & Isolators

Castle key interlocking systems, VCB–Isolator mechanical and electrical interlocks, and synchronizing checks are often wired incorrectly or bypassed altogether at site.

Tip – Implement both hardwired and SCADA-based interlocks for safety. Cross-check logic in the schematic diagram, test using simulation mode before commissioning.

6. Forgetting to Test the Control Wiring Before Energization

Commissioning teams sometimes energize panels before thoroughly testing control loops — risking a wrong trip or equipment damage.

Tip – Always perform point-to-point continuity testing, simulate trip/close commands, and validate indications. Maintain control wiring checklists during FAT and SAT.

Conclusion -

Precision in substation control wiring is vital to ensure equipment protection, operational safety, and system reliability. Avoiding common wiring mistakes not only reduces troubleshooting time but also safeguards costly power infrastructure.
