33kV Isolator Manufacturer & Supplier in Goa

Balaji Engineers Isolators Pvt. Ltd. manufactures and supplies 33kV outdoor isolators and disconnectors for electrical substations, utility projects, EPC projects, industrial switchyards and renewable-energy applications in Goa.

Our 33kV isolator range can be configured according to project requirements, including Turn & Twist, Double Break and other outdoor disconnector arrangements, with options for earth switch, manual operation and motorized operation.

For projects in Goa, the final equipment configuration can be developed according to the purchaser’s technical specification, electrical ratings, short-circuit requirements, insulation requirements, mechanical arrangement and applicable standards.

33kV Isolators for Goa's Electrical Substations

Goa has an established 33kV sub-transmission and distribution network.

The Electricity Department, Government of Goa, publishes information on substations and associated feeders and identifies numerous 33kV systems and 33/11kV substations across the state. Its published network information includes 33kV infrastructure associated with locations including Tivim, Kadamba, Verna, Xeldem, Bicholim, Mapusa, Margao, Canacona and other areas.

The Government of Goa also publishes a power-line network map covering 33kV and above infrastructure.

This makes 33kV switchgear and substation equipment relevant for:

33kV Isolator Applications in Goa

Balaji Engineers can support enquiries for 33kV isolator applications such as:

📝 Utility Substations

33kV isolators can be used for feeder, busbar and equipment isolation in outdoor substations according to the applicable utility specification.

📝 Industrial Substations

Goa has industrial areas and industrial electrical infrastructure requiring reliable MV/HV switching and isolation equipment.

📝 EPC Projects

For new substations, extensions, replacement projects and electrical infrastructure upgrades, isolators may be specified as part of the outdoor switchyard equipment.

📝 Solar & Renewable Energy Projects

33kV isolators can be considered for solar, wind and other renewable-energy evacuation substations and associated electrical infrastructure, subject to the project design, interconnection requirements and purchaser specification.

📝 Substation Replacement & Retrofit

Where an existing isolator needs replacement, the new equipment should be matched with the existing:

Phase spacing
Busbar arrangement
Foundation
Contact arrangement

Electrical ratings
Operating mechanism
Insulation requirements

33kV Outdoor Isolator – Technical Specifications

The exact specification should be finalized according to the project/tender requirement.

Parameter	Typical Specification / Configuration
Equipment	Outdoor Isolator / Disconnector
Voltage Class	33kV
Highest System Voltage	Up to 36kV, as applicable
Rated Current	400A / 630A / 800A / 1250A / 1600A and other ratings as required
Isolator Type	Turn & Twist / Double Break / other applicable design
Earth Switch	With / Without
Operation	Manual / Motorized
Insulator	Porcelain / Polymer, as specified
Frequency	50Hz
Installation	Outdoor
STC	As per project specification
STC Duration	As per project specification
Insulation Level	As per project specification
Standard	IEC 62271-102 / applicable purchaser specification

33kV Turn & Twist Isolator for Goa

A 33kV Turn & Twist Isolator is one of the configurations that can be considered where the purchaser’s specification calls for this type of operating arrangement.

The Turn & Twist design can be specified for applications requiring a particular mechanical contact movement and outdoor substation configuration.

For a technical enquiry, the purchaser should clearly identify:

Rated voltage
Rated current
STC
STC duration

Earth-switch requirement
Manual/motorized operation
Insulator type
Creepage distance

Phase spacing
Support structure
Terminal arrangement
Applicable standard

Balaji Engineers can provide the appropriate technical configuration based on the project requirement.

33kV Double Break Isolator for Goa

A 33kV Double Break Isolator can be used for outdoor substation applications where the project specification calls for a double-break arrangement.

Depending on the design, the equipment can be supplied with:

Manual operating mechanism
Motorized operating mechanism
Earth switch
Support structure

Terminal connectors
Interlocking arrangement
Position indication

The final construction should always be verified against the manufacturer’s GA drawing and purchaser’s specification.

33kV Isolator With Earth Switch

For projects requiring an earth-switch arrangement, Balaji Engineers can offer configurations with an earth switch according to the applicable specification.

A typical enquiry may specify:

33kV Outdoor Isolator with Earth Switch

The technical specification should define the earth-switch requirements, interlocking, operating mechanism and associated accessories.

33kV Isolator Without Earth Switch

Some applications specifically require an isolator without an earth switch.

Therefore, when requesting a quotation, the purchaser should clearly state:

With Earth Switch / Without Earth Switch

This avoids technical ambiguity during tender evaluation and offer preparation.

33kV Motorized Isolator for Goa

Motorized operation may be required where the substation design calls for remote or electrically operated switching mechanisms.

A motorized 33kV isolator may include:

Motor operating mechanism
Motor operating box/panel
Auxiliary contacts
Local/remote operation

Electrical interlocking
Mechanical interlocking
Position indication
Control wiring

The motor operating mechanism should be selected according to the project control voltage and purchaser’s specification.

33kV Isolator STC Rating

Short-Time Withstand Current (STC) is an important parameter in selecting an isolator.

For example, a project may specify:

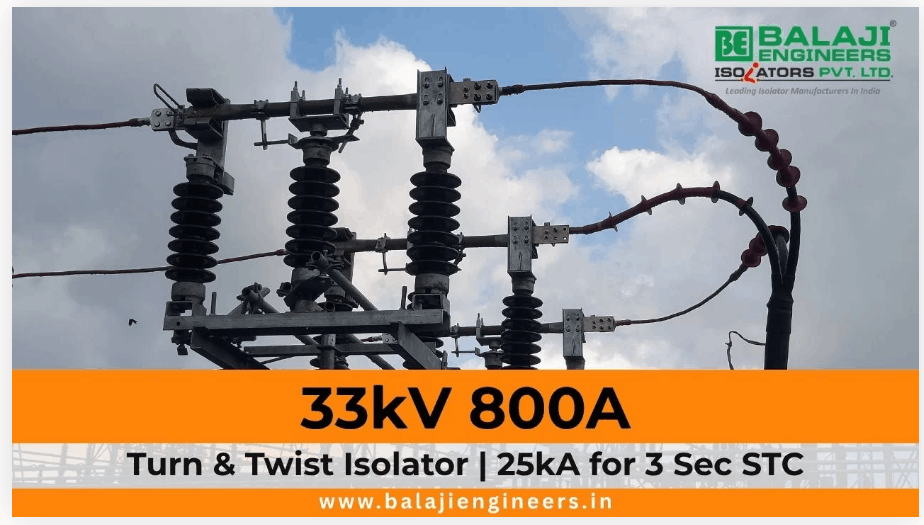

33kV – 800A – 25kA for 3 Seconds

In such a case, the technical offer should clearly state:

Rated Current : 800A
Short-Time Withstand Current : 25kA
Duration : 3 seconds

The normal current rating and short-time withstand current are different electrical characteristics.

The required STC should be selected according to the system fault level and the applicable project specification.

IEC 62271-102 for 33kV Isolators

IEC 62271-102 is the key international standard covering high-voltage AC disconnectors and earthing switches.

For a 33kV isolator project, the manufacturer should consider the applicable requirements of IEC 62271-102 together with:

Purchaser’s technical specification
Utility or project requirements
Applicable Indian standards
Type-test requirements

Site conditions
Insulation requirements
Short-circuit requirements

Balaji Engineers’ 33kV product information references IEC 62271-102 for its 33kV isolator range.

33kV Isolator Testing & Type-Test Documentation

For EPC, industrial, utility and renewable-energy projects, technical documentation is an important part of the procurement process.

Depending on the project requirements, documentation may include:

- Type-test certificate
- Type-test report
- Routine-test report
- GTP
- GA drawing
- QAP
- Datasheet
- Compliance statement
- Installation manual
- Maintenance manual

Where applicable, relevant testing may include:

- Temperature-rise test
- Short-time withstand current test
- Peak withstand current test
- Power-frequency withstand test
- Lightning impulse withstand test
- Mechanical endurance test
- Main-circuit tests
- Earth-circuit tests

For any specific tender, the applicable certificate should be checked against the actual offered design, voltage class, current rating and tested configuration.

33kV Isolator for Goa Government & Utility Projects

When preparing a tender specification for a 33kV isolator, the purchaser should clearly identify:

Rated voltage
Highest system voltage
Rated current
STC rating
STC duration
Peak withstand current
Power-frequency withstand voltage
Lightning impulse withstand voltage
Creepage distance
Clearance

Isolator type
Earth-switch requirement
Manual/motorized operation
Insulator type
Support structure
Terminal arrangement
Applicable standard
Type-test requirement
Routine testing
Quality documentation

This helps manufacturers submit technically comparable offers.

33kV Isolator for EPC Contractors in Goa

EPC contractors working on solar, wind, industrial and substation projects may require more than the basic isolator.

A project package can include:

33kV isolator
Earth switch
Operating mechanism
Motor operating box
Support structure

Terminal connectors
Interlocking
Auxiliary contacts
GA drawings

GTP
Type-test documentation
QAP
Installation information

Balaji Engineers can support technical enquiries based on the specific project requirement.

33kV Isolator for Industrial Projects in Goa

For industrial electrical installations, the isolator selection should be based on the actual system requirements.

Important parameters include:

Voltage : 33kV
Current : As required
Fault Level : Project-specific
STC : Project-specific

Operation : Manual/Motorized
Earth Switch : As required
Insulation : As required
Installation : Outdoor

Industries should provide the relevant single-line diagram, equipment specification or tender document when requesting a technical quotation.

33kV Isolator Manufacturer in Goa – Why Choose Balaji Engineers?

Balaji Engineers Isolators Pvt. Ltd. is an Indian manufacturer specializing in outdoor isolator/disconnector equipment.

Our product range covers multiple voltage and current ratings and can be configured for different substation applications.

Our capabilities include:

33kV Isolator Supplier for Goa – Technical Support

For Goa projects, customers can approach Balaji Engineers with:

🛠️ Tender document

🛠️ Technical specification

🛠️ GTP

🛠️ Single-line diagram

🛠️ Existing GA drawing

🛠️ Existing isolator photograph

🛠️ Required quantity

🛠️ Required delivery location

Our engineering team can then evaluate the required configuration and prepare the appropriate technical and commercial offer.

Frequently Asked Questions

What is a 33kV isolator?

A 33kV isolator is an outdoor high-voltage disconnector used to provide electrical isolation of equipment or sections of a substation according to the applicable operating procedure and system design.

Who manufactures 33kV isolators for Goa?

Balaji Engineers Isolators Pvt. Ltd. manufactures and supplies 33kV outdoor isolators for utility, EPC, industrial and other project applications in India, including enquiries for Goa.

Does Balaji Engineers supply 33kV Turn & Twist isolators?

Yes, Turn & Twist configurations are part of the company’s isolator range, subject to the specific technical requirement.

Are 33kV isolators available with an earth switch?

Yes. Configurations with or without an earth switch can be considered according to the project specification.

Are motorized 33kV isolators available?

Yes. Motorized operating arrangements can be offered according to the project control and operating requirements.

What current ratings are available for 33kV isolators?

Depending on the product configuration, current ratings can include 400A, 630A, 800A, 1250A, 1600A and other ratings according to the design and project requirement.

What is the applicable standard for a 33kV isolator?

IEC 62271-102 is the principal international standard for high-voltage AC disconnectors and earthing switches, subject to the applicable edition and project requirements.

What is STC in a 33kV isolator?

STC means Short-Time Withstand Current. It specifies the short-circuit current that the equipment is required to withstand for a specified duration under the applicable test conditions.

Can Balaji Engineers supply 33kV isolators for Government tenders?

Balaji Engineers can participate in applicable Government, utility, PSU and EPC requirements, subject to the individual tender’s qualification, approved-vendor and technical requirements.

Can you provide GTP and GA drawings?

Yes. Applicable technical documents such as GTP, GA drawings and datasheets can be provided according to the project requirement.

Can 33kV isolators be supplied for solar projects in Goa?

Yes. 33kV isolators can be considered for solar and renewable-energy substations subject to the electrical design and project specification.

Can Balaji Engineers supply isolators outside Goa?

Yes. Balaji Engineers supplies isolator products for projects across India and supports international enquiries subject to the destination country’s technical requirements.
