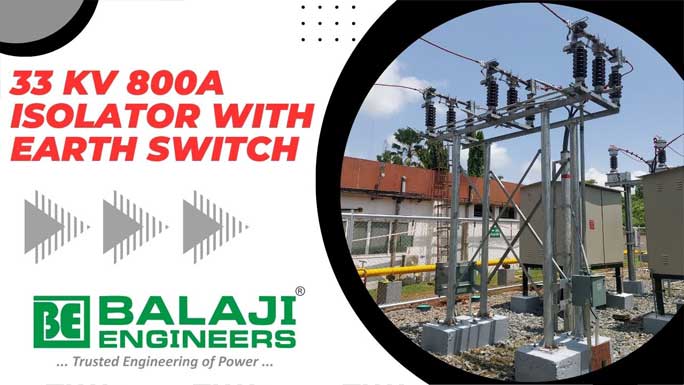

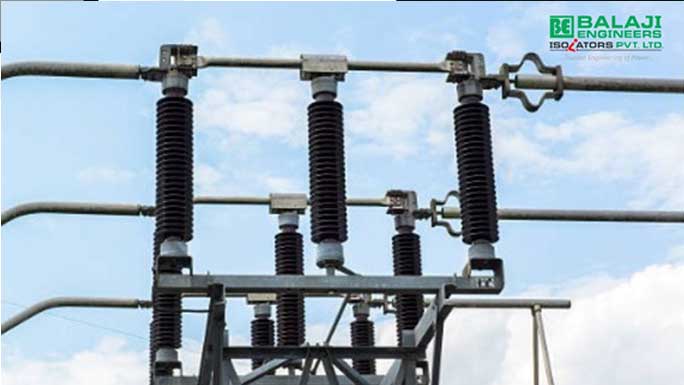

33 kV 800Amp isolator with earth switch
The 33 kV 800A isolator with earth switch is a critical component in electrical power systems, designed to safely disconnect and ground electrical circuits for maintenance and protection. These isolators are essential in ensuring uninterrupted power transmission by providing a secure isolation mechanism for high-voltage networks.
Manufactured according to IEC 62271-102 international standards, these isolators are available with polymer and porcelain insulators, catering to diverse environmental and operational needs. MSEDCL-approved versions of these isolators are widely used in Indian power distribution projects, making them a preferred choice for both government and private sector applications.
An isolator in a substation is a mechanical switch used to completely disconnect a section of the electrical circuit when needed. It ensures the safety of personnel during maintenance and prevents accidental energization. Here’s why isolators are used in substations:
Balaji Enigneers Isolators Private Limited are manufacturing HV Isolator disconnectors with Brand Name “Balaji Engineers ” who cater their Isolator disconnector products in Pan India as well as export globally.

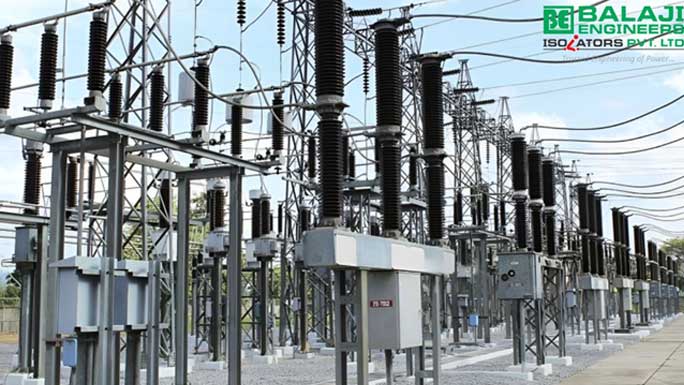

Why Isolator switch used in substation?
Isolators provide a visible break in the circuit, ensuring that the equipment is de-energized before maintenance work begins.
This prevents accidental electrocution or damage to equipment.
Isolators separate a portion of the substation (like transformers, circuit breakers, or busbars) from the live system.
They are mainly used in conjunction with circuit breakers to ensure a safe disconnection.
Unlike circuit breakers, isolators are designed to operate only when there is no load current.
They cannot interrupt fault currents but can safely isolate parts of the system after the circuit breaker has operated.
Technical Specifications of 33 kV 800A Disconnector
| Parameter | Specification |
|---|---|
| Rated Voltage | 33 kV |
| Rated Current | 800 A |
| Rated Frequency | 50 Hz |
| Insulator Type | Polymer / Porcelain |
| Breaking Capacity | Not applicable (Non-load breaking) |
| Withstand Voltage (Impulse) | 170 kVp |
| Power Frequency Withstand Voltage | 70 kV (1 min) |
| Rated Short-time Withstand Current | 25 kA for 3 sec |
| Peak Withstand Current | 62.5 kA |
| Main Blade Type | Double break |
| Earth Switch Operation | Manual / Motorized |
| Applicable Standards | IEC 62271-102 : 2018 |
| Mounting | Horizontal |
| Operating Mechanism | Manual / Motorized |
| Ambient Temperature | -5°C to +50°C |
| Application | Substations, Industrial, Solar, Wind, Hydro |
Voltage Rating 33 kV
Current Rating 800A
Compliance IEC 62271-102
Insulator Options: Available in polymer and porcelain
Operation: Manual and motorized options
ApplicationSuitable for substations, industrial, solar, wind, and hydroelectric projects
Type: Single break, double break, or pantograph-type disconnectors
SafetyIntegrated earth switch ensures enhanced grounding and operator safety
36 kV 800A isolators in both domestic and international markets are commnaly used for their isolation need in various substation specially Distribution network , Transmission network , Power generation substation .
- 33 kV 800A isolator with earth switch
- MSEDCL-approved 33 kV isolator
- 33 kV disconnector with earth switch
- IEC 62271-102 isolator supplier
- W33 kV isolator supplier in India
- HV disconnector switch 33 kV
- 33 kV 800A disconnect switch manufacturer
- 33 kV isolator for export
- Polymer insulator isolator 33 kV
- Porcelain insulator disconnector 33 kV
- 33 kV isolator for solar projects
- 33 kV switchgear components exporter
In India, the 33 kV 800A isolator with earth switch finds widespread application in:
- State Electricity Boards & UtilitiesIncluding MSEDCL (Maharashtra State Electricity Distribution Company Limited) and other DISCOMs.
- Renewable Energy Projects:Critical for solar and wind farm substations.
- Industrial Power Distribution: Ensuring reliable isolation for industrial plants, steel factories, and cement industries.
- Transmission & Distribution Networks: EUsed in 33/11 kV substations and switchyards for effective power control.
- Power Generation Power Generation substation
Why is a 36kV, 800A Isolator Used?
A 36kV, 800A isolator disconnector is used in electrical power systems, especially in substations, to ensure safe isolation of circuits and facilitate maintenance without affecting the entire network. Below are the key reasons why it is used:
1. For Safe Isolation in Medium Voltage (MV) Systems
A 36kV isolator is used in medium voltage (MV) substations to isolate a section of the circuit from the main power supply.
2. Handles High Load Currents (800A)
The 800A rating means it can carry up to 800 Amperes continuously without overheating.
It is used in industries, power plants, and renewable energy projects where heavy electrical loads need to be controlled.
Can support up to ~50 MVA load capacity (depending on system configuration).
3. Used in Renewable Energy & Distribution Networks
Wind, Solar, and Hydro substations use 36kV isolators to isolate transformers, switchgear, or transmission lines.
Ensures easy maintenance of circuit breakers and transformers.
4. Supports Circuit Breaker Maintenance
Installed on both sides of a 36kV circuit breaker in a substation.
Ensures complete de-energization before maintenance.
Prevents back-feed and enhances worker safety.
5. Works with Earth Switch for Safety
Often equipped with an Earth Switch to ground the disconnected section, preventing accidental voltage build-up.
Used in GIS & AIS substations for complete safety.
6. Can Withstand High Fault Currents
Designed to withstand short-circuit currents up to 25kA for 3 seconds.
Ensures system stability in case of faults.
7. Compliance with IEC & IS Standards
Used as per IEC 62271-102 for isolators.
Ensures reliable performance in high-voltage applications.
Why is an Earth Switch Used in an Isolator?
An Earth Switch is used in an isolator disconnector for safety reasons, ensuring that the disconnected section of a power system is completely de-energized before maintenance or repairs. It prevents accidental re-energization and protects personnel from electrical hazards.
Key Reasons for Using an Earth Switch in an Isolator?
1. Ensures Complete Discharge of Residual Voltage
Even after disconnecting a circuit using an isolator, residual or induced voltage may remain due to capacitive coupling from adjacent live conductors.
The earth switch safely grounds this residual voltage, preventing accidental shocks.
2. Provides a Visible Earthing Point
A mechanically interlocked earth switch gives a visible confirmation that the circuit is grounded.
This enhances safety in substations, transmission lines, and industrial plants.
3. Protects Against Back-Feed or Induced Voltage
In high-voltage networks, inductive coupling from live lines can cause unexpected voltages in the isolated section.
An earth switch eliminates this risk by safely grounding the circuit.
4. Mechanical & Electrical Interlocking for Safety
The Earth Switch is interlocked with the main isolator to prevent closing the earth switch while the system is live.
This avoids dangerous short circuits.
Why Partner with Balaji Engineers?
Our in-house R&D team continuously innovates to provide cutting-edge disconnectors that enhance energy reliability.
Equipped with advanced testing and production facilities, we ensure every disconnector meets the highest quality benchmarks.
From customization to prompt after-sales service, we prioritize client satisfaction at every step.
Why Choose a Reliable Disconnector switch Manufacturer?
Selecting a trusted 33 kV 800A isolator manufacturer ensures:
- Compliance with International Standards (IEC 62271-102)
- Customizable solutions for different power applications
- Competitive pricing for bulk orders and exports
- Rigorous quality assurance and type-tested certification
- Availability in both polymer and porcelain insulators
Conclusion
The 33 kV 800A isolator with earth switch is a vital component in power transmission and distribution networks. Whether for MSEDCL-approved projects in India or exports to international markets, selecting an IEC 62271-102 compliant manufacturer guarantees superior quality, safety, and efficiency.
For businesses seeking reliable 33 kV isolators, partnering with leading manufacturers ensures long-term success in the global power sector. Investing in high-quality isolators supports a stable, efficient, and sustainable energy infrastructure worldwide.
